DV2108-T2是一款高清数字电视机顶盒 ，周全兼容DVB-T2标准（MPEG2/h.264）。
* 周全兼容DVB-T2标准（MPEG2/h.264） ，知足NBTC标准
* 支持PAL ，NTSC制式
* 支持多语言菜单：泰文、英文等
* 支持4:3 ，16:9荧屏宽高比,支持PAN&SCAN和信箱模式
* 7天电子节目指南 ，支持怙恃锁和喜欢频道 ，支持节目加锁、删除、移动
* 最大支持存储500个节目
* 支持环路高迅速度
* 支持多音轨,多字幕
* 支持通过USB或OAD举行软件升级
| General | Standards |
| DVB-T/T2 Compliant(MPEG2/H.264) | S |
| According to standard requirement of NBTC | S |
| Sensitive Tuner with Loop-Through | S |
| Supported PAL, NTSC | S |
| Variable aspect ratio(4:3,16:9) with PAN&SCAN vector or letter BOX option | S |
| Output Resolution: 480i, 576p&576i, 720p&1080i 50Hz, 720p&1080i 60Hz, 1080p | S |
| Storing Memory: 100 carriers, 500channels | S |
| 7days Electronic Program Guide(EPG) | S |
| Favorite group and parental lock supported | S |
| Supported programmer lock, delete, move | S |
| Supported multi-language menu: Thai, English | S |
| Multi-language audio | S |
| Multi-language Subtitle output | S |
| Supported Software upgrade by USB or OAD | S |
| Supported USB 2.0 Interface | S |
| Timer: | S |
| Supported 30 timers | S |
| Supported record event of EPG | S |
| Supported customized time to jump the designated program | S |
| USB( FAT, FAT32, NTFS) | S |
| Supported Music Formats: MP3, AAC, M4A(.mp3, .m4a) | S |
| Supported Picture Formats: JPG, BMP, PNG (.jpg, .bmp, .png) | S |
| Supported Video Formats: MPEG-1, MPEG-2, MPEG-4, H.264, M-JPEG, AVI, MPG, MP4, TS, TRP, TP, MOV, MKV, VOB, DAT, XVID, M2TS | S |
| Supported External Subtitles: sub, srt, ssa, ass, smi, txt | S |
| Supported within hanging subtitles: txt | S |
| USB PVR(FAT, FAT32, NTFS) | S |
| Supported Recording and Playback TS files, supported Timeshift function | S |
| Tuner Parameter | Standards |
| Input Frequency: (UHF)470∽862MHz | S |
| Input Level: -85dBm ～ -20dBm | S |
Input Impendence: 75
|
S |
| Demodulation: QPSK／16QAM／64QAM / 256QAM | S |
| Supported DVB-T/T2 Standard | S |
| VIDEO | Standards |
| Supported MPEG-1/2/4, AVC/H.264,VC-1 Video Decode | S |
| Aspect Ratio: 4:3, 16:9 | S |
| Supported PAL, NTSC Video Formats | S |
| Supported HDMI high-definition Video Output | S |
| AUDIO | Standards |
| Supported MPEG-1LayerⅠ&Ⅱ,MP3, AAC-LC,HE-AAC,HE AACv2 Audio Decode | S |
| Sampling Rate: 32KHz／44.1 KHz／48KHz | S |
| Audio Output Impedance: Low | S |
| Output Mode: Stereo, Left and Right | S |
| PROCESSOR | Standards |
| Flash Memory: 8MB | S |
| DDRⅡ Memory: 64MB | S |
| Demodulator: MSB1236C | S |

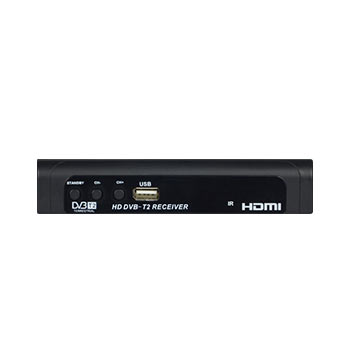

| FRONT PANEL | Standards |
| IR Receiver | S |
| USB 2.0 Interface | S |
| Keys | S |
| Display 4 Digit, 7segment LED | S |
| LED Indicator | S |

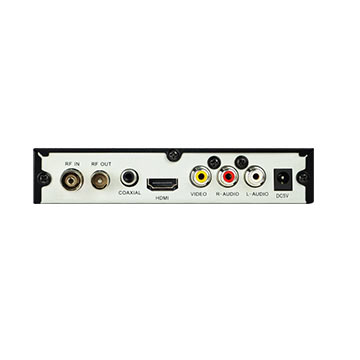

| REAR PANEL | Standards |
| RF IN | S |
| RF OUT | S |
| COAXIAL | S |
| HDMI | S |
| CVBS, Audio L&R | S |
| DC IN | S |
| OTHER | Standards |
| Input Voltage: DC 5V/1.5A | S |
| Power Consumption: 8W Max | S |
| Ambient Operation Temperature: 0~40°C | S |
| Product size: 145mm(length) X 94mm(width) X 30mm(height) | S |
| ACCESSORIES | Standards |
| Remote Control, Battery | S |
| AV Cable | S |
| Power Adapter | S |
| User Manual | S |
